Recorders
Ovide SmartAssist Streaming
Qtake 2 cam software
22 inch Hd touchscreen monitor
Battery powered
Smart Assist can stream live video or independent playback to iPhones and iPads (upto 16 devices), each with independent permissions and watermarks.
Ovide SmartAssist
Qtake 2 cam software
22 inch Hd touchscreen monitor
Battery powered
Raptor HD+
Enhanced QuickMix Built In
Simultaneous HD and SD outputs
Blackmagic Videohub control software
Compatible with RED Epic & Arri Alexa

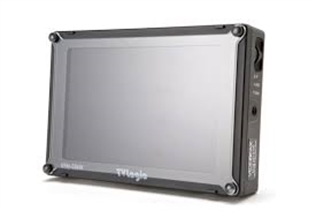

TvLogic VFM-056
Size:5.6''
Resolution: 1280x800
Pixe Pitch: 0.094mm
Color Depth: 16.7M
Viewing angle: 170 degrees
Luminance: 300cd/m2
Constrast Ratio: 500:1
Inputs:
1x RCA analog input composite
3x RCA analog input component
1x BNC 3G-SDI A channel input
1x HDMI input
Outputs:
1x BNC 3G-SDI Output

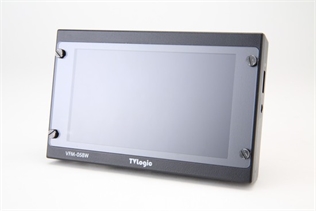

TVLogic VFM-058
Size:5.5''
Resolution: 1280x1080
Pixe Pitch: 0.063mm
Color Depth: 16.7M
Viewing angle: 160 degrees
Luminance: 450cd/m2
Constrast Ratio: 1000:1
Inputs:
1x BNC 3G-SDI A channel input
1x HDMI input
Outputs:
1x BNC 3G-SDI Output
1x HDMI Output

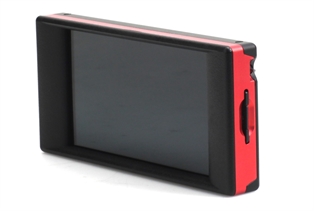

Transvideo Starlite
Size: 4.7''
Internal Recorder
Rezolution: 1280x720 OLED
Inputs: HD-SDI and 3G-SDI on BNC
Outputs: HD-SDI on BNC
Recording Media: SD CARD 32gb maximum
Connector: Lemo 5 pin power/canbus
Panasonic BT-L 1500E
Size:15.4"
Rezolution: 1280x800
Color depth: 16M
Viewing angle: 160 degrees
Contrast: 700:1
Inputs:
2x BNC HD/SDI
1xHDMI
1x VGA
1x Component YpbPr
1x Composite BNC
IKAN VX17
Size:17
Rezolution: 1440x900
False color
Peaking
Clip guides
Inputs:
BNC HD/SDI
HDMI
Component
Composite
DVI
S-Video
TvLogic LVM-176w
Size:17''
Resolution: 1366x768
Pixe Pitch: 0.273mm
Color Depth: 16.7M
Viewing angle: 178 degrees
Luminance: 350cd/m2
Constrast Ratio: 900:1
Inputs:
2x BNC 3G-SDI A channel input
1x HDMI input
1x DVI input
1x Analog BNC composite
3x Analog BNC component
Outputs:
1x BNC 3G-SDI Output
1x Analog BNC composite
3x Analog BNC component
TvLogic LVM-212w
Size:21.5"
Resolution: 1920x1080
Pixe Pitch: 0.2475mm
Color Depth: 16.7M
Viewing angle: 178 degrees
Luminance: 365cd/m2
Constrast Ratio: 1000:1
Inputs:
2x BNC 3G-SDI A/B channel input
1x HDMI input
1x DVI input
1x BNC analog input composite
3x BNC analog input component
Outputs:
1x BNC 3G-SDI Output
1x BNC analog output composite
1x BNC analog output component
TvLogic TSM-232w
Size:23''
Resolution: 1280x1080
Pixe Pitch: 0.2652mm
Color Depth: 16.7M
Viewing angle: 178 degrees
Luminance: 300cd/m2
Constrast Ratio: 1000:1
Inputs:
1x BNC 3G-SDI A channel input
1x HDMI input
1x DVI input
1x BNC analog input composite
Outputs:
1x BNC 3G-SDI Output
1x BNC analog output composite
JVC DTV21 G1
Size:21''
Resolution: 1920x1080
Viewing angle: 178 degrees
Color Depth: 16.7m
Luminance: 400cd/m2
Constrast Ratio: 1000:1
Inputs:
1x BNC 3G-SDI A channel input
1x HDMI input
Outputs:
1x BNC 3G-SDI Output
1x HDMI Output
Inputs:
1x BNC 3G-SDI A/B channel input
1x DVI input
Outputs:
1x BNC 3G-SDI Output
JVC DTV24 G1
Size:24''
Resolution: 1920x1200
Viewing angle: 178 degrees
Color Depth: 16.7m
Luminance: 400cd/m2
Constrast Ratio: 1000:1
Inputs:
1x BNC 3G-SDI A channel input
1x HDMI input
Outputs:
1x BNC 3G-SDI Output
1x HDMI Output
Inputs:
1x BNC 3G-SDI A/B channel input
1x DVI input
Outputs:
1x BNC 3G-SDI Output
