Zoom’s

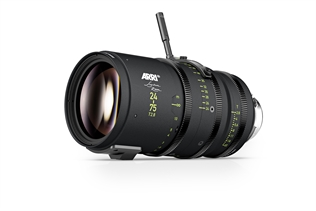

Arri Signature Zoom 24-75mm
-An all-rounder lens covering most shooting needs
-Lightweight and versatile
-Length: 24.4cm
-T-Stop: T2.8
-Front diameter: 114mm
-Weight: 4.1Kg/9.0lbs
-Close Focus: 41cm/16.2"

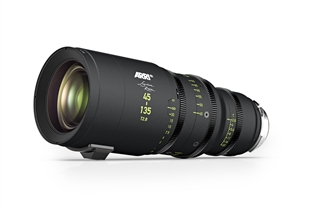

Arri Signature Zoom 45-135mm
-Compact and lightweight
-Well-balanced for handheld and stabilizer systems
-Length: 30cm/11.8''
-Weight:3.6Kg/8lbs.
-T-Stop: 2.8
-Front diameter: 114mm
-Close focus: 65.6cm/25.8''
Angenieux Optimo 15-40mm
ZOOM RATIO: 2.7X
FOCAL LENGTH: 15 - 40 mm
APERTURE: f/2.4 – T2.6
CLOSE FOCUS: 2 ft – 0.6 m
INTERNAL FOCUS: Yes
IMAGE COVERAGE S35+: 31.4 mm diagonal
WEIGHT (APPROX.): 4.2 lbs – 1.92 kg
LENGTH: 186 mm
FRONT DIAMETER: 114 mm
Angenieux Optimo 28-76mm
ZOOM RATIO: 2.7X
FOCAL LENGTH: 28 - 76 mm
APERTURE: f/2.4 – T2.6
CLOSE FOCUS: 2 ft – 0.6 m
INTERNAL FOCUS: Yes
IMAGE COVERAGES 35+: 31.4 mm diagonal
WEIGHT (APPROX.): 4.2 lbs – 1.92 kg
LENGTH: 186 mm
FRONT DIAMETER: 114 mm
Angeniuex Optimo 24-290mm
ZOOM RATIO: 12X
APERTURE: f/2.5 – T2.8
CLOSE FOCUS: 4 ft – 1.22 m
INTERNAL FOCUS: Yes
IMAGE COVERAGE: 35 mm academy – 30 mm diagonal
With extenders, image coverage becomes S35+ - 31.4 mm diagonal
WEIGHT (APPROX.): 24.2 lbs – 11 kg
LENGTH: 440 mm
FRONT DIAMETER: 162 mm
Angenieux 17-102mm
ZOOM RATIO: 6x
FOCAL LENGTH: 17-102mm
APERTURE: T2.9
CLOSE FOCUS: 2'6'' - 75cm
IMAGE COVERAGE S35+: 30mm diagonal
WEIGHT (APPROX.): 19 lbs – 8.6 kg
LENGTH: 406mm
FRONT DIAMETER: 144mm
ARRI ALURA 15.5-45mm
ZOOM RATIO: 2.9X
FOCAL LENGTH: 15.5 - 45 mm
APERTURE: f/2.8 – T22
CLOSE FOCUS: 2 ft – 0.6 m
INTERNAL FOCUS: Yes
IMAGE COVERAGE S35+: 31.4 mm diagonal
WEIGHT (APPROX.): 4.2 lbs – 1.92 kg
LENGTH: 228 mm
FRONT DIAMETER: 114 mm
ARRI ALURA 45-250mm
ZOOM RATIO: 5.6X
FOCAL LENGTH: 45-250 mm
APERTURE: f/2.4 – T2.6
CLOSE FOCUS: 1.2m
INTERNAL FOCUS: Yes
IMAGE COVERAGE S35+: 31.4 mm diagonal
WEIGHT (APPROX.): 7.5kg
LENGTH: 370 mm
FRONT DIAMETER: 134 mm
